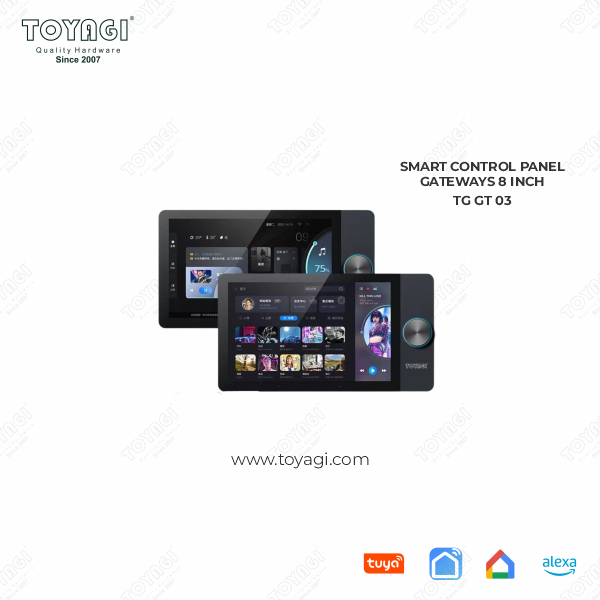

TOYAGI SMART CONTROL PANEL GATEWAYS 8 inch TG GT 03

Smart Home Control Panel, Dimmer and Background Music Player, 8''
Switch Panel in-Wall Touchscreen Control for Various Tuya
Smart Appliances about F8- Multifunction combination center
control screen. F8 Smart home control panel parameters
Operating system: Android 8.1 System
CPU model: Four nuclear Cortex-A35
CPU frequency : 1.5GHZ
CPU auditing: Four nuclear
ScreenMain screen size: 8"
Resolution ratio: 1280*800
Material : IPS (Full View)
Touch screen: Multitouch capacitive screen Storage
Fuselage memory: 2GB
Expand TF card memory : 8GB
USB 2.0 interface : 32 GB read
Network: Zigbee WIFI Support
Output power: 2*(10-25W) (TI digital tapping)
Output impedance: 4 to 8
Total harmonic distortion: 1W.
Frequency response : 20Hz-20KHz
Audio To Noise Ration : 98db
Bluetooth Version : 4.0
IOT : Tuya /ZIGBEE Lights, outlets, air conditioning, scenes, groups, video doorbells, curtains
Relay: 2 way light control, less than 200W
Bring their own horn : 1 w small horn
Audio formats: MP3, WAV, WMA, FLAC, APE, and ACC, AC3, OGG audio formats
Video format : The MPEG - 1/2/3/4, the RM/RMVB, WMV, MOV, MK, VOB, AVI, 3 gp, H, 264 video format, etc
Power input : AC110-250V
Audio input: AUX, one group
Audio output: a group
F8 Multi Functional intelligent Central Control Screen other function
1. Mobile APP control, voice intercom, broadcast, APP push content
2. Support voice wake-up, play music, stories, children's songs, tell jokes, check the weather, check the flight, smart
home control
3. Bluetooth playback, the host can control the Bluetooth playback device to switch music
4. Play music at regular intervals, start songs at regular intervals, and play specified music at regular intervals
5. Support external devices to control the device through 485
6. Local, TF card, U disk, Bluetooth, play music
7. 485: supports bidirectional 485 control
8. SDK is open and connected to smart home

WiFi Connection: 2.4GHz
